Features
- One of the highest conversion efficiency in this class
- One of the highest conversion efficiency in this class
- Manufactured by world class fully automatic machinery in a dust proof environment
- Excellent low light & long wavelength response (>1100nm)
- Certified to operate in very harsh environments
- IP67 class junction box
Applications
- Solar power packs
- Solar lighting system
- Offgrid solar power projects
- Solar water pumping system

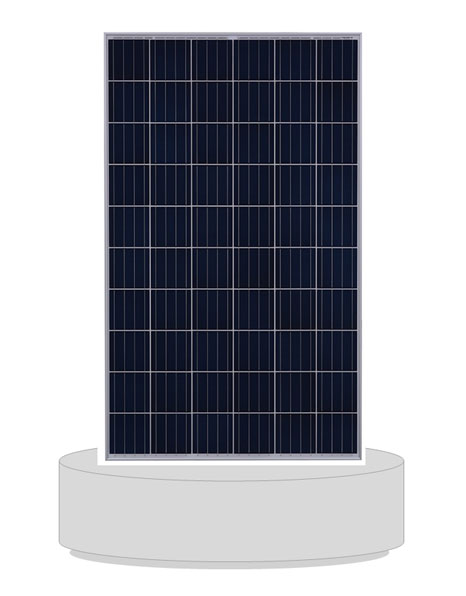

UNLEASHING THE POWER OF HIMALAYAN SOLAR MODULES
Our solar modules are manufactured in state-of-the-art ISO-certified facilities, guaranteeing the highest quality standards and reliability.
With guaranteed positive tolerance, our solar modules deliver consistent and reliable power output, maximizing energy generation.
Our modules are designed to reduce equipment loss while optimizing power generation and maximizing solar potential.
Our solar modules are weatherproof and built to withstand harsh environmental conditions for long-term endurance.
Even in weak light conditions, our solar modules excel, delivering more power output and ensuring maximum efficiency.
We use high-grade raw materials in our manufacturing process, ensuring uncompromised quality and optimal performance.
Technical Specifications
| Solar Cell | 60(6×10)156.75x156.75mm poly crystalline silicon solar cell |
| Front Cover | 3.2mm thick tempered glass |
| Back Cover | TPT/TPE film |
| Encapsulant | EVA film |
| Frame | Double-layer anodized aluminum alloy |
| Junction Box | IP65 rated |
| Connectors | MC4 or compatibale connectors |
| Dimensions | 1955x982x40mm |
| Max. System Voltage | DC1000V (IEC) |
| Max. Series Fuse | 20A |
| Operating Temperature | -40℃+80℃ |
| Storage Temperature | -40℃+80℃ |
| Max. Wind/Snow Load | 2400Pa / 5400Pa |
| Application Class | Class A |
| Module Area(m2) | 1.94m2 |
| Weight | 22kg |
| Model | No of Cell | Cell Wattage | Short Circuit Current | Operating Voltage | Operating Current | Open Circuit Voltage | Module Efficiency | Max. Series Fuse Rating | Power Tolerance |
| - | - | (Wp) | (Isc) | (Vmp) | (Imp)A | (Voc) | % | - | + |
| HS-48M 220 | 48 | 4.67 | 8.99A | 26.256V | 8.54A | 30.96V | 17.01 | 20 | 5 |
| HS-48M 210 | 48 | 4.47 | 8.85A | 25.68V | 8.36A | 30.48V | 16.32 | 20 | 5 |
| HS-48Mb 200 | 48 | 4.42 | 8.81A | 25.536V | 8.31A | 30.336V | 16.17 | 20 | 5 |
| HS-60M 180 | 48 | 4.42 | 8.81A | 25.536V | 8.31A | 30.336V | 16.17 | 20 | 5 |
Warranty
- 10 years for product defects in materials and workmanship
- 27 years linear power output warranty: 10 years at 90% of the minimal rated power output, 25 years at 80% of the minimal rated power output
- 80% of the minimal rated power output
Standard Test Condition
- All electrical parameters specified at Standard Test Conditions
- 25 degree C cell temperature
- 1000 W/m2 irradiance
- Air Mass(AM) 1.5
